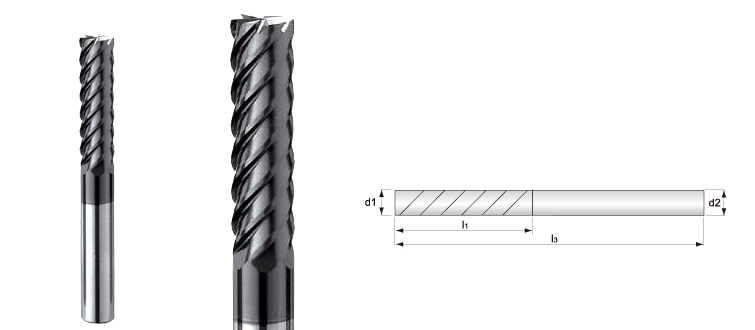

Long flute 6 flute end mills
For finishing process and final smoothing process. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| L6SED060 | 6.0 | 25 | 75 | 6 |
| L6SED060B | 6.0 | 30 | 100 | 6 |
| L6SED080B | 8.0 | 35 | 100 | 8 |
| L6SED100 | 10.0 | 40 | 100 | 10 |
| L6SED100B | 10.0 | 40 | 150 | 10 |
| L6SED120 | 12.0 | 45 | 100 | 12 |
| L6SED120B | 12.0 | 45 | 150 | 12 |
| L6SED160B | 16.0 | 60 | 150 | 16 |
| L6SED200B | 20.0 | 80 | 150 | 20 |
For finishing process and final smoothing process.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
