Three flute end mills for Titanium alloys processing
Product Introduce-3刃立銑刀 (鈦合金專用)
Product Introduce

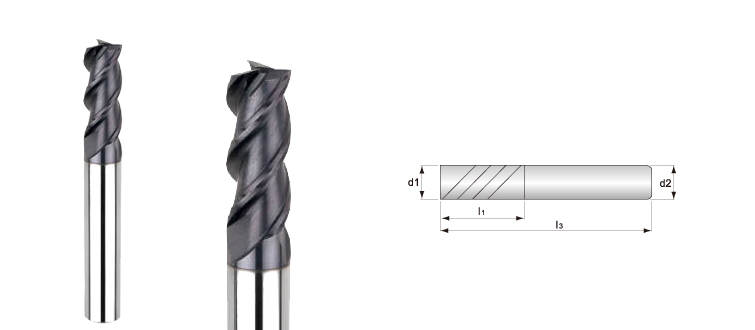

Three flute end mills for Titanium alloys processing
For slotting and side milling process. For High speed cutting and high hardness. Application materials: Titanium GR.15.
| Type No. | Diameter d1 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| SED453020 | 2.0 | 5.0 | 50 | 6 |
| SED453025 | 2.5 | 7.0 | 50 | 6 |
| SED453030F | 3.0 | 8.0 | 50 | 4 |
| SED453030 | 3.0 | 8.0 | 50 | 6 |
| SED453040F | 4.0 | 10.0 | 50 | 4 |
| SED453040 | 4.0 | 10.0 | 50 | 6 |
| SED453045 | 4.5 | 10.0 | 50 | 6 |
| SED453050 | 5.0 | 13.0 | 50 | 6 |
| SED453060 | 6.0 | 15.0 | 50 | 6 |
| SED453080 | 8.0 | 20.0 | 60 | 8 |
| SED453100 | 10.0 | 25.0 | 75 | 10 |
| SED453120 | 12.0 | 30.0 | 75 | 12 |
| SED354160 | 16.0 | 40.0 | 100 | 16 |
| SED452010F | 1 | 2.5 | 50 | 4 |
| SED452015F | 1.5 | 4.0 | 50 | 4 |
| SED452020F | 2 | 5 | 50 | 4 |
| SED452030F | 3 | 8 | 50 | 4 |
| SED452040F | 4 | 10 | 50 | 4 |
| SED452050 | 5 | 13 | 50 | 6 |
| SED452060 | 6 | 15 | 50 | 6 |
| SED452080 | 8 | 20 | 60 | 8 |
| SED452100 | 10 | 25 | 75 | 10 |
| SED452120 | 12 | 30 | 75 | 12 |
For slotting and side milling process.
For High speed cutting and high hardness.
Application materials: Titanium GR.15.
