Carbide End Mills
/
Two flute ball end mills for Aluminum Alloys Processing
Product Introduce-2刃球型立銑刀 (鋁合金專用)
Product Introduce
Two flute ball end mills for Aluminum Alloys Processing
Application materials: Carbon steel, low alloyed steel, high alloyed steel, aluminum, copper, plastics.

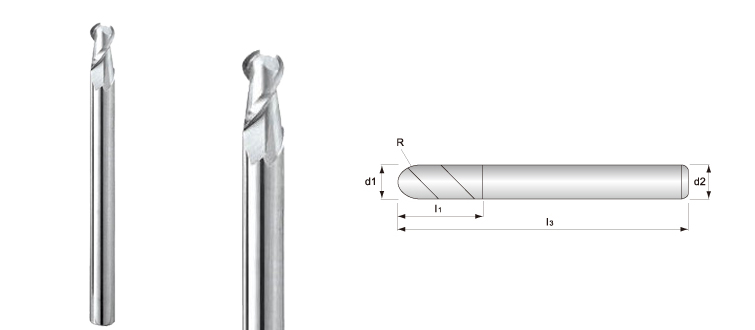

| Type No. | Diameter d1 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| UR010F | R 0.5 | 2 | 50 | 4 |
| UR015F | R 0.75 | 3 | 50 | 4 |
| UR020F | R 1.0 | 4 | 50 | 4 |
| UR030F | R 1.5 | 6 | 50 | 4 |
| UR040F | R 2.0 | 8 | 50 | 4 |
| UR040 | R 2.0 | 8 | 50 | 6 |
| UR050 | R 2.5 | 10 | 50 | 6 |
| UR060 | R 3.0 | 12 | 50 | 6 |
| UR080 | R 4.0 | 16 | 60 | 8 |
| UR100 | R 5.0 | 20 | 75 | 10 |
| UR120 | R 6.0 | 24 | 75 | 12 |
| UR160 | R 8.0 | 32 | 100 | 16 |
| UR200 | R 10.0 | 32 | 100 | 20 |
Application materials: Carbon steel, low alloyed steel, high alloyed steel, aluminum, copper, plastics.
