Product Introduce-2刃立銑刀(鋁合金專用)
Product Introduce
Two flute end mills for aluminum alloys processing
For slotting, and drilling. For High speed cutting and high hardness. Application materials: General steel, carbon steel, low-alloyed steel, hi-alloyed steel, copper, aluminum, plastics.

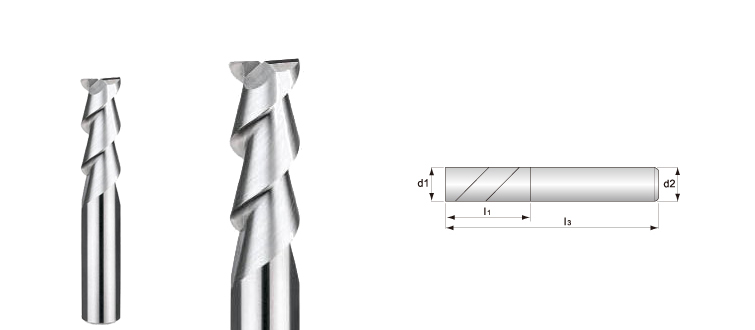

| Type No. | Diameter d1 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| 155WW010F | 1 | 2.5 | 50 | 4 |
| 155WW010 | 1 | 2.5 | 50 | 6 |
| 155WW015F | 1.5 | 4 | 50 | 4 |
| 155WW015-3 | 1.5 | 4 | 50 | 3 |
| 155WW020F | 2 | 5 | 50 | 4 |
| 155WW020 | 2 | 5 | 50 | 6 |
| 155WW025F | 2.5 | 6 | 50 | 4 |
| 155WW025 | 2.5 | 7 | 50 | 6 |
| 155WW030F | 3 | 8 | 50 | 4 |
| 155WW030 | 3 | 8 | 50 | 6 |
| 155WW040F | 4 | 10 | 50 | 4 |
| 155WW040 | 4 | 10 | 50 | 6 |
| 155WW050 | 5 | 13 | 50 | 6 |
| 155WW060 | 6 | 15 | 50 | 6 |
| 155WW070 | 7 | 18 | 60 | 8 |
| 155WW080 | 8 | 20 | 60 | 8 |
| 155WW090 | 9 | 23 | 75 | 10 |
| 155WW100 | 10 | 25 | 75 | 10 |
| 155WW110 | 11 | 28 | 75 | 12 |
| 155WW120 | 12 | 30 | 75 | 12 |
| 155WW160 | 16 | 45 | 100 | 16 |
| 155WW200 | 20 | 45 | 100 | 20 |
For slotting, and drilling.
For High speed cutting and high hardness.
Application materials: General steel, carbon steel, low-alloyed steel, hi-alloyed steel, copper, aluminum, plastics.
