Three flute end mills for Titanium alloys processing
For slotting and side milling process. For High speed cutting and high hardness. Application materials: Titanium GR.15.

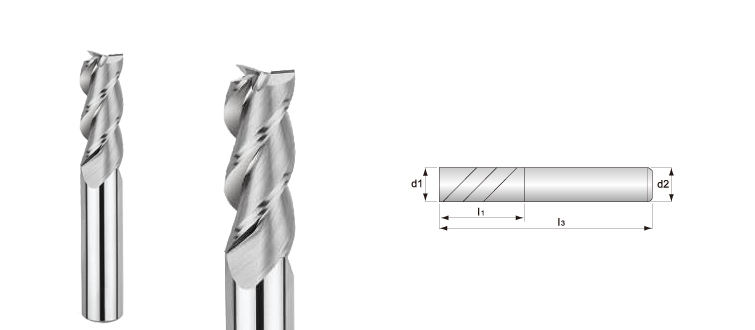

| Type No. | Diameter d1 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| 155WW030x3T-3 | 3 | 8 | 50 | 4 |
| 155WW030FX3T | 3 | 8 | 50 | 4 |
| 155WW040X3T | 4 | 10 | 50 | 4 |
| 155WW040FX3T | 4 | 10 | 50 | 4 |
| 155WW050X3T | 5 | 13 | 50 | 6 |
| 155WW060X3T | 6 | 15 | 50 | 6 |
| 155WW080X3T | 8 | 20 | 60 | 8 |
| 155WW090X3T | 9 | 25 | 75 | 10 |
| 155WW100X3T | 10 | 25 | 75 | 10 |
| 155WW120X3T | 12 | 30 | 75 | 12 |
| 155WW160X3T | 14 | 35 | 100 | 14 |
| 155WW160X3T | 16 | 40 | 100 | 16 |
| 155WW200X3T | 18 | 40 | 100 | 20 |
| 155WW200X3T | 20 | 40 | 100 | 20 |
For slotting and side milling process.
For High speed cutting and high hardness.
Application materials: Titanium GR.15.
