Carbide End Mills
/
Square end mills
/
Micro diameter miniature 2 flute end mills
Product Introduce-微小徑2刃立銑刀
Product Introduce
Micro diameter miniature 2 flute end mills
For Moderate process, smoothing process. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.

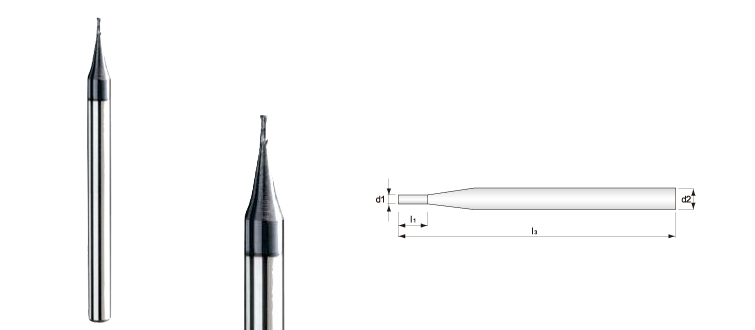

| Type No. | Diameter d1 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| SED001 | 0.1 | 0.2 | 50 | 4 |
| SED002 | 0.2 | 0.4 | 50 | 4 |
| SED003 | 0.3 | 0.3 | 50 | 4 |
| SED004 | 0.4 | 0.4 | 50 | 4 |
| SED005 | 0.5 | 0.5 | 50 | 4 |
| SED006 | 0.6 | 0.6 | 50 | 4 |
| SED007 | 0.7 | 0.7 | 50 | 4 |
| SED008 | 0.8 | 0.8 | 50 | 4 |
| SED009 | 0.9 | 0.9 | 50 | 4 |
| SED010 | 1.0 | 1.0 | 50 | 4 |
| SED012 | 1.2 | 1.2 | 50 | 4 |
| SED015 | 1.5 | 1.5 | 50 | 4 |
| SED016 | 1.6 | 1.6 | 50 | 4 |
| SED018 | 1.8 | 1.8 | 50 | 4 |
| SED020 | 2.0 | 2.0 | 50 | 4 |
| SED001-3 | 0.1 | 0.2 | 50 | 3 |
| SED002-3 | 0.2 | 0.4 | 50 | 3 |
| SED003-3 | 0.3 | 0.3 | 50 | 3 |
| SED004-3 | 0.4 | 0.4 | 50 | 3 |
| SED005-3 | 0.5 | 0.5 | 50 | 3 |
| SED006-3 | 0.6 | 0.6 | 50 | 3 |
| SED007-3 | 0.7 | 0.7 | 50 | 3 |
| SED008-3 | 0.8 | 0.8 | 50 | 3 |
| SED009-3 | 0.9 | 0.9 | 50 | 3 |
For Moderate process, smoothing process.<br />
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
