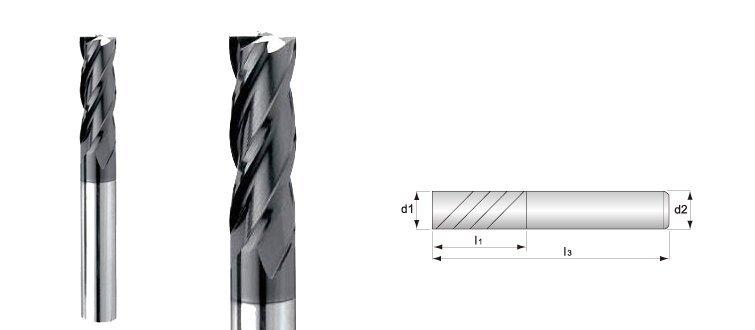

Long flute 4 flute end mills Helix angle 35
For Deep groove processing. For High speed cutting and high hardness. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type NO. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| 35L4AL010F | 1.0 | 4 | 75 | 4 |
| 35L4AL015F | 1.5 | 6 | 75 | 4 |
| 35L4AL020F | 2.0 | 8 | 75 | 4 |
| 35L4AL025F | 2.5 | 10 | 75 | 4 |
| 35L4AL030F | 3.0 | 12 | 75 | 4 |
| 35L4AL040F | 4.0 | 16 | 75 | 4 |
| 35L4AL020 | 2.0 | 8 | 75 | 6 |
| 35L4AL030 | 3.0 | 12 | 75 | 6 |
| 35L4AL040 | 4.0 | 16 | 75 | 6 |
| 35L4AL050 | 5.0 | 20 | 75 | 6 |
| 35L4AL060 | 6.0 | 25 | 75 | 6 |
| 35L4AL080 | 8.0 | 25 | 75 | 8 |
| 35L4AL030-3 | 3.0 | 12 | 75 | 3 |
| 35L4AL030FB | 3.0 | 12 | 100 | 4 |
| 35L4AL030B-3 | 3.0 | 12 | 100 | 3 |
| 35L4AL030B | 3.0 | 12 | 100 | 6 |
| 35L4AL040FB | 4.0 | 16 | 100 | 4 |
| 35L4AL050B | 5.0 | 25 | 100 | 6 |
| 35L4AL060B | 6.0 | 25 | 100 | 6 |
| 35L4AL080B | 8.0 | 35 | 100 | 8 |
| 35L4AL100 | 10.0 | 40 | 100 | 10 |
| 35L4AL120 | 12.0 | 45 | 100 | 12 |
| 35XL4AL060 | 6.0 | 25 | 150 | 6 |
| 35XL4AL080 | 8.0 | 35 | 150 | 8 |
| 35XL4AL100 | 10.0 | 40 | 150 | 10 |
| 35XL4AL120 | 12.0 | 45 | 150 | 12 |
| 35XL4AL160 | 16.0 | 65 | 150 | 16 |
| 35XL4AL200 | 20.0 | 75 | 150 | 20 |
For Deep groove processing.
For High speed cutting and high hardness.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
