Long flute 2 flute end mills
For High speed and deep groove cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.

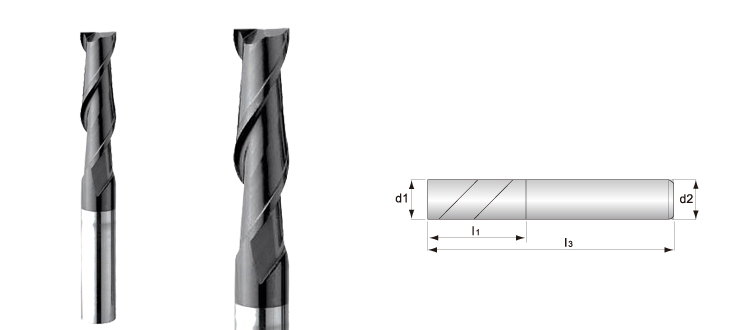

| Type NO. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| 35L2AL010F | 1.0 | 4 | 75 | 4 |
| 35L2AL015F | 1.5 | 6 | 75 | 4 |
| 35L2AL020F | 2.0 | 8 | 75 | 4 |
| 35L2AL025F | 2.5 | 10 | 75 | 4 |
| 35L2AL030F | 3.0 | 12 | 75 | 4 |
| 35L2AL040F | 4.0 | 16 | 75 | 4 |
| 35L2AL020 | 2.0 | 8 | 75 | 6 |
| 35L2AL030 | 3.0 | 12 | 75 | 6 |
| 35L2AL040 | 4.0 | 16 | 75 | 6 |
| 35L2AL050 | 5.0 | 20 | 75 | 6 |
| 35L2AL060 | 6.0 | 25 | 75 | 6 |
| 35L2AL080 | 8.0 | 25 | 75 | 8 |
| 35L2AL030FB | 3.0 | 12 | 100 | 4 |
| 35L2AL040FB | 4.0 | 16 | 100 | 4 |
| 35L2AL050B | 5.0 | 25 | 100 | 6 |
| 35L2AL060B | 6.0 | 25 | 100 | 6 |
| 35L2AL080B | 8.0 | 35 | 100 | 8 |
| 35L2AL100 | 10.0 | 40 | 100 | 10 |
| 35L2AL120 | 12.0 | 45 | 100 | 12 |
| 35XL2AL060 | 6.0 | 25 | 150 | 6 |
| 35XL2AL080 | 8.0 | 35 | 150 | 8 |
| 35XL2AL100 | 10.0 | 40 | 150 | 10 |
| 35XL2AL120 | 12.0 | 45 | 150 | 12 |
| 35XL2AL160 | 16.0 | 65 | 150 | 16 |
| 35XL2AL200 | 20.0 | 75 | 150 | 20 |
For High speed and deep groove cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
