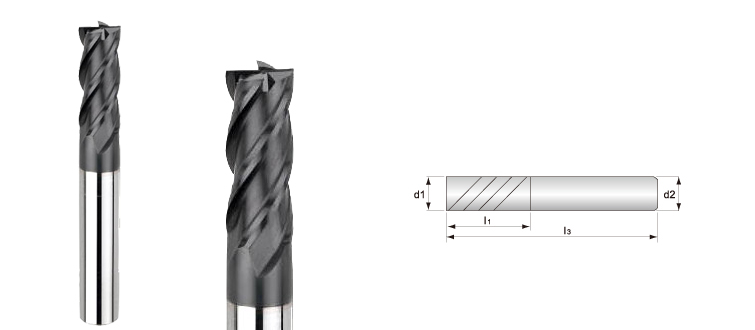

4 flute end mills (Sword for High-speed and High-hardness)
For finishing process. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type NO. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| SED354010FG | 1.0 | 2.5 | 50 | 4 |
| SED354015FG | 1.5 | 4.0 | 50 | 4 |
| SED354020FG | 2.0 | 5.0 | 50 | 4 |
| SED354025FG | 2.5 | 7.0 | 50 | 4 |
| SED354030FG | 3.0 | 8.0 | 50 | 4 |
| SED354040FG | 4.0 | 10.0 | 50 | 4 |
| SED354050G | 5.0 | 13.0 | 50 | 6 |
| SED354060G | 6.0 | 15.0 | 50 | 6 |
| SED354080G | 8.0 | 20.0 | 60 | 8 |
| SED354100G | 10.0 | 25.0 | 75 | 10 |
| SED354120G | 12.0 | 30.0 | 75 | 12 |
| SED354140G | 14.0 | 35.0 | 100 | 14 |
| SED354160G | 16.0 | 40.0 | 100 | 16 |
| SED354180G | 18.0 | 40.0 | 100 | 18 |
| SED354200G | 20.0 | 45.0 | 100 | 20 |
| SED354250G | 25.0 | 45.0 | 100 | 250 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| SED354010-3G | 1.0 | 2.5 | 50 | 3 |
| SED354015-3G | 1.5 | 4 | 50 | 3 |
| SED354020-3G | 2.0 | 5 | 50 | 3 |
| SED354025-3G | 2.5 | 7 | 50 | 3 |
| SED354030-3G | 3.0 | 8 | 50 | 3 |
| SED354010G | 1.0 | 2.5 | 50 | 6 |
| SED354015G | 1.5 | 4 | 50 | 6 |
| SED354020G | 2.0 | 5 | 50 | 6 |
| SED354025G | 2.5 | 7 | 50 | 6 |
| SED354030G | 3.0 | 8 | 50 | 6 |
| SED354040G | 4.0 | 10 | 50 | 6 |
For finishing process.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
