Carbide End Mills
/
Square end mills
/
For Stainless steel processing 4 flute end mills (standard type)
Product Introduce-不鏽鋼專用4刃立銑刀(標準款)
Product Introduce
For Stainless steel processing 4 flute end mills (standard type)
For stainless steel, mold and die, finishing process. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.

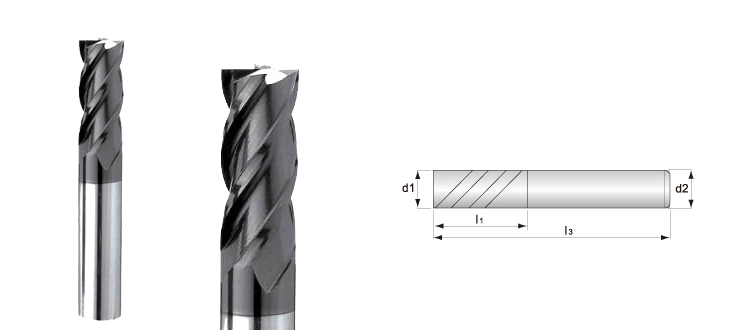

| Type NO. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| 454AL010F | 1.0 | 2.5 | 50 | 4 |
| 454AL015F | 1.5 | 4 | 50 | 4 |
| 454AL020F | 2.0 | 5 | 50 | 4 |
| 454AL025F | 2.5 | 7 | 50 | 4 |
| 454AL030F | 3.0 | 8 | 50 | 4 |
| 454AL040F | 4.0 | 10 | 50 | 4 |
| 454AL020 | 2.0 | 5 | 50 | 6 |
| 454AL030 | 3.0 | 8 | 50 | 6 |
| 454AL040 | 4.0 | 10 | 50 | 6 |
| 454AL050 | 5.0 | 13 | 50 | 6 |
| 454AL060 | 6.0 | 15 | 50 | 6 |
| 454AL080 | 8.0 | 20 | 60 | 8 |
| 454AL100 | 10.0 | 25 | 75 | 10 |
| 454AL120 | 12.0 | 30 | 75 | 12 |
| 454AL140 | 14.0 | 35 | 100 | 14 |
| 454AL140-16 | 14.0 | 45 | 100 | 16 |
| 454AL160 | 16.0 | 45 | 100 | 16 |
| 454AL180 | 18.0 | 45 | 100 | 18 |
| 454AL200 | 20.0 | 45 | 100 | 20 |
| 454AL250 | 25.0 | 45 | 100 | 25 |
For stainless steel, mold and die, finishing process.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
