Product Introduce

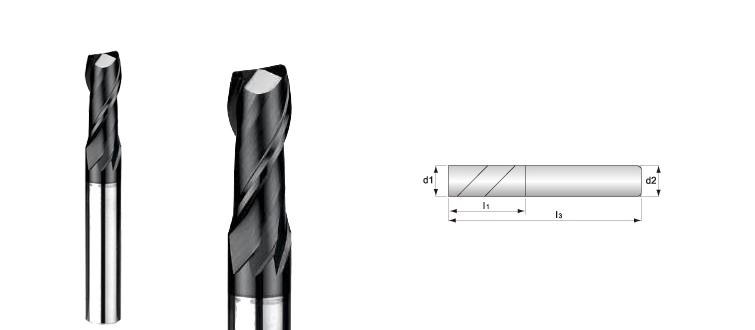

Two flute end mills
For roughing process and intermediate process. standard tool type and general tool type. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| 352AL010F | 1.0 | 2.5 | 50 | 4 |
| 352AL015F | 1.5 | 4.0 | 50 | 4 |
| 352AL020F | 2.0 | 5.0 | 50 | 4 |
| 352AL025F | 2.5 | 7.0 | 50 | 4 |
| 352AL030F | 3.0 | 8.0 | 50 | 4 |
| 352AL035F | 3.5 | 10.0 | 50 | 4 |
| 352AL040F | 4.0 | 10.0 | 50 | 4 |
| 352AL045 | 4.5 | 13.0 | 50 | 6 |
| 352AL050 | 5.0 | 13.0 | 50 | 6 |
| 352AL055 | 5.5 | 13.0 | 50 | 6 |
| 352AL060 | 6.0 | 15.0 | 50 | 6 |
| 352AL065 | 6.5 | 15.0 | 60 | 8 |
| 352AL070 | 7.0 | 17.0 | 60 | 8 |
| 352AL075 | 7.5 | 17.0 | 60 | 8 |
| 352AL080 | 8.0 | 20.0 | 60 | 8 |
| 352AL085 | 8.5 | 25.0 | 75 | 10 |
| 352AL090 | 9.0 | 25.0 | 75 | 10 |
| 352AL095 | 9.5 | 25.0 | 75 | 10 |
| 352AL100 | 10.0 | 25.0 | 75 | 10 |
| 352AL105 | 10.5 | 25.0 | 75 | 12 |
| 352AL110 | 11.0 | 28.0 | 75 | 12 |
| 352AL115 | 11.5 | 28.0 | 75 | 12 |
| 352AL120 | 12.0 | 30.0 | 75 | 12 |
| 352AL130-16 | 13.0 | 33.0 | 100 | 16 |
| 352AL140-16 | 14.0 | 35.0 | 100 | 16 |
| 352AL150 | 15.0 | 40.0 | 100 | 16 |
| 352AL160 | 16.0 | 45.0 | 100 | 16 |
| 352AL170-18 | 17.0 | 45.0 | 100 | 18 |
| 352AL180-20 | 18.0 | 45.0 | 100 | 20 |
| 352AL190 | 19.0 | 45.0 | 100 | 20 |
| 352AL200 | 20.0 | 45.0 | 100 | 20 |
| 352AL250 | 25.0 | 45.0 | 100 | 25 |
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| 352AL010-3 | 1.0 | 2.5 | 50 | 3 |
| 352AL015-3 | 1.5 | 4.0 | 50 | 3 |
| 352AL020-3 | 2.0 | 5.0 | 50 | 3 |
| 352AL025-3 | 2.5 | 7.0 | 50 | 3 |
| 352AL030-3 | 3.0 | 8.0 | 50 | 3 |
| 352AL050-5 | 5.0 | 13.0 | 50 | 5 |
| 352AL010 | 1.0 | 2.5 | 50 | 6 |
| 352AL015 | 1.5 | 4.0 | 50 | 6 |
| 352AL020 | 2.0 | 5.0 | 50 | 6 |
| 352AL025 | 2.5 | 7.0 | 50 | 6 |
| 352AL030 | 3.0 | 8.0 | 50 | 6 |
| 352AL035 | 3.5 | 10.0 | 50 | 6 |
| 352AL040 | 4.0 | 10.0 | 50 | 6 |
HRC 60
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| SED352010F | 1.0 | 2.5 | 50 | 4 |
| SED352015F | 1.5 | 4.0 | 50 | 4 |
| SED352020F | 2.0 | 5.0 | 50 | 4 |
| SED352025F | 2.5 | 7.0 | 50 | 4 |
| SED352030F | 3.0 | 8.0 | 50 | 4 |
| SED352035F | 3.5 | 10.0 | 50 | 4 |
| SED352040F | 4.0 | 10.0 | 50 | 4 |
| SED352045 | 4.5 | 13.0 | 50 | 6 |
| SED352050 | 5.0 | 13.0 | 50 | 6 |
| SED352055 | 5.5 | 13.0 | 50 | 6 |
| SED352060 | 6.0 | 15.0 | 50 | 6 |
| SED352065 | 6.5 | 15.0 | 60 | 8 |
| SED352070 | 7.0 | 17.0 | 60 | 8 |
| SED352075 | 7.5 | 17.0 | 60 | 8 |
| SED352080 | 8.0 | 20.0 | 60 | 8 |
| SED352085 | 8.5 | 25.0 | 75 | 10 |
| SED352090 | 9.0 | 25.0 | 75 | 10 |
| SED352095 | 9.5 | 25.0 | 75 | 10 |
| SED352100 | 10.0 | 25.0 | 75 | 10 |
| SED352105 | 10.5 | 25.0 | 75 | 12 |
| SED352110 | 11.0 | 28.0 | 75 | 12 |
| SED352115 | 11.5 | 28.0 | 75 | 12 |
| SED352120 | 12.0 | 30.0 | 75 | 12 |
| SED352130 | 13.0 | 33.0 | 100 | 16 |
| SED352140 | 14.0 | 35.0 | 100 | 16 |
| SED352150 | 15.0 | 38.0 | 100 | 16 |
| SED352160 | 16.0 | 40.0 | 100 | 16 |
| SED352170 | 17.0 | 40.0 | 100 | 20 |
| SED352180 | 18.0 | 40.0 | 100 | 20 |
| SED352190 | 19.0 | 45.0 | 100 | 20 |
| SED352200 | 20.0 | 45.0 | 100 | 20 |
| SED352250 | 25.0 | 45.0 | 100 | 25 |
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|
| SED352010 | 1.0 | 2.5 | 50 | 3 |
| SED352015 | 1.5 | 4.0 | 50 | 3 |
| SED352020 | 2.0 | 5.0 | 50 | 3 |
| SED352030 | 3.0 | 8.0 | 50 | 3 |
| SED352010 | 1.0 | 2.5 | 50 | 6 |
| SED352015 | 1.5 | 4.0 | 50 | 6 |
| SED352020 | 2.0 | 5.0 | 50 | 6 |
| SED352025 | 2.5 | 7.0 | 50 | 6 |
| SED352030 | 3.0 | 8.0 | 50 | 6 |
| SED352035 | 3.5 | 10.0 | 50 | 6 |
| SED352040 | 4.0 | 10.0 | 50 | 6 |
For roughing process and intermediate process. standard tool type and general tool type.
For roughing process and intermediate process. standard tool type and general tool type.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
