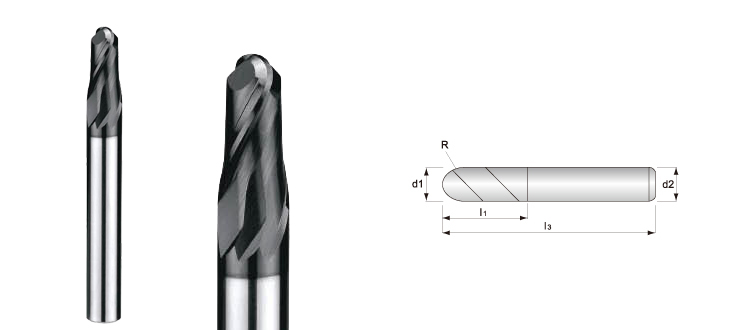

Long Shank 2 flute ball nose end mills
For High speed cutting and high hardness. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|
| LR2010F | R 0.5 | 2 | 75 | 4 |
| LR2015F | R 0.75 | 3 | 75 | 4 |
| LR2020F | R 1 | 4 | 75 | 4 |
| LR2025F | R 1.25 | 5 | 75 | 4 |
| LR2030F | R 1.5 | 6 | 75 | 4 |
| LR2040F | R 2 | 8 | 75 | 4 |
| LR2030-3 | R 1.5 | 6 | 75 | 3 |
| LR2010 | R 0.5 | 2 | 75 | 6 |
| LR2015 | R 0.75 | 3 | 75 | 6 |
| LR2020 | R 1 | 4 | 75 | 6 |
| LR2030 | R 1.5 | 6 | 75 | 6 |
| LR2040 | R 2 | 8 | 75 | 6 |
| LR2050 | R 2.5 | 10 | 75 | 6 |
| LR2060 | R 3 | 12 | 75 | 6 |
| LR2080 | R 4 | 16 | 75 | 8 |
| LR2010FB | R 0.5 | 2 | 100 | 4 |
| LR2030FB | R 1.5 | 6 | 100 | 4 |
| LR2040FB | R 2 | 8 | 100 | 4 |
| LR2020B | R 1 | 4 | 100 | 6 |
| LR2030B | R 1.5 | 6 | 100 | 6 |
| LR2040B | R 2 | 8 | 100 | 6 |
| LR2050B | R 2.5 | 10 | 100 | 6 |
| LR2060B | R 3 | 12 | 100 | 6 |
| LR2080B | R 4 | 16 | 100 | 8 |
| LR20100 | R 5 | 20 | 100 | 10 |
| LR20120 | R 6 | 24 | 100 | 12 |
| XLR2060 | R 3 | 12 | 150 | 6 |
| XLR2080 | R 4 | 16 | 150 | 8 |
| XLR2100 | R 5 | 20 | 150 | 10 |
| XLR2120 | R 6 | 24 | 150 | 12 |
| XLR2160 | R 8 | 32 | 150 | 16 |
| XLR2200 | R 10 | 40 | 150 | 20 |
For High speed cutting and high hardness.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
