Product Introduce-4刃球型立銑刀
Product Introduce

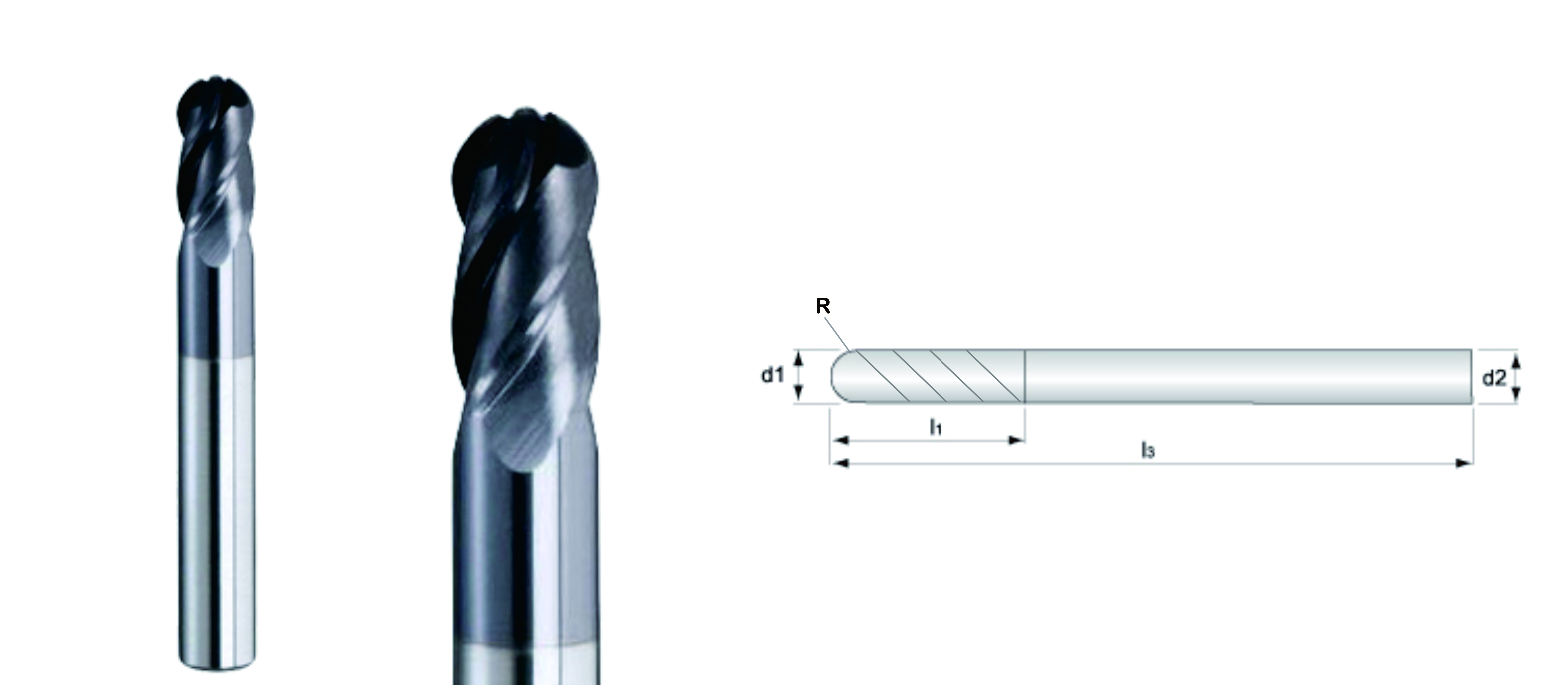

Four flute ball-nose end mills
Application For smoothing process, face mill, and side milling. For High speed cutting and high hardness. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|
| MR4010F | R0.5 | 2 | 50 | 4 |
| MR4015F | R0.75 | 3 | 50 | 4 |
| MR4020F | R1 | 4 | 50 | 4 |
| MR4030F | R1.5 | 6 | 50 | 4 |
| MR4040F | R2 | 8 | 50 | 4 |
| MR4040 | R2 | 8 | 50 | 6 |
| MR4050 | R2.5 | 10 | 50 | 6 |
| MR4060 | R3 | 12 | 50 | 6 |
| MR4080 | R4 | 16 | 60 | 8 |
| MR4100 | R5 | 20 | 75 | 10 |
| MR4120 | R6 | 24 | 75 | 12 |
| MR4160 | R8 | 32 | 100 | 16 |
| MR4200 | R10 | 40 | 100 | 20 |
Application For smoothing process, face mill, and side milling.
For High speed cutting and high hardness.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
