Product Introduce-2刃球型立銑刀
Product Introduce

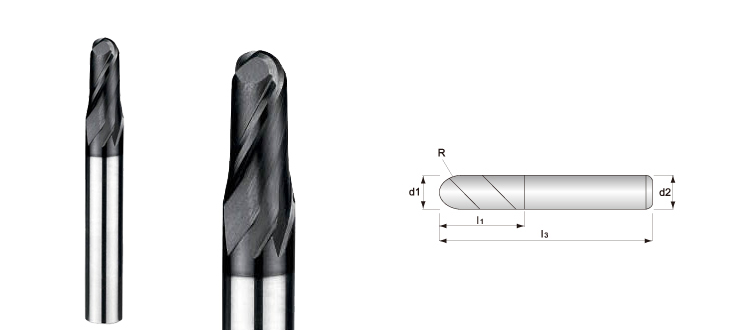

Two flute ball-nose end mills
For R angle and side milling and face milling. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L l3 |
Shank Dia d2 |
|---|---|---|---|---|
| MR2010F | R 0.5 | 2 | 50 | 4 |
| MR2015F | R 0.75 | 3 | 50 | 4 |
| MR2020F | R 1.0 | 4 | 50 | 4 |
| MR2025F | R 1.25 | 5 | 50 | 4 |
| MR2030F | R 1.5 | 6 | 50 | 4 |
| MR2035F | R 1.75 | 7 | 50 | 4 |
| MR2040F | R 2.0 | 8 | 50 | 4 |
| MR2045 | R 2.25 | 9 | 50 | 6 |
| MR2050 | R 2.5 | 10 | 50 | 6 |
| MR2055 | R 2.75 | 11 | 50 | 6 |
| MR2060 | R 3.0 | 12 | 50 | 6 |
| MR2065 | R 3.25 | 12 | 60 | 8 |
| MR2070 | R 3.5 | 12 | 60 | 8 |
| MR2075 | R 3.75 | 14 | 60 | 8 |
| MR2080 | R 4.0 | 16 | 60 | 8 |
| MR2090 | R 4.5 | 18 | 75 | 10 |
| MR2100 | R 5.0 | 20 | 75 | 10 |
| MR2120 | R 6.0 | 24 | 75 | 12 |
| MR2160 | R 8.0 | 32 | 100 | 16 |
| MR2200 | R 10 | 40 | 100 | 20 |
| 型號 | R ±0.01 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| MR2010-3 | R0 .5 | 2 | 50 | 3 |
| MR2015-3 | R 0.75 | 3 | 50 | 3 |
| MR2020-3 | R 1.0 | 4 | 50 | 3 |
| MR2025-3 | R 1.25 | 5 | 50 | 3 |
| MR2030-3 | R 1.5 | 6 | 50 | 3 |
| MR2010 | R 0.5 | 2 | 50 | 6 |
| MR2015 | R 0.75 | 3 | 50 | 6 |
| MR2020 | R 1.0 | 4 | 50 | 6 |
| MR2030 | R 1.5 | 6 | 50 | 6 |
| MR2040 | R 2.0 | 8 | 50 | 6 |
For R angle and side milling and face milling.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
