Two flute ball-nose end mills(Sword for High-speed and H-hardness)
Product Introduce-2刃球型立銑刀(高速高硬度專用刀缺彩藍照片)
Product Introduce

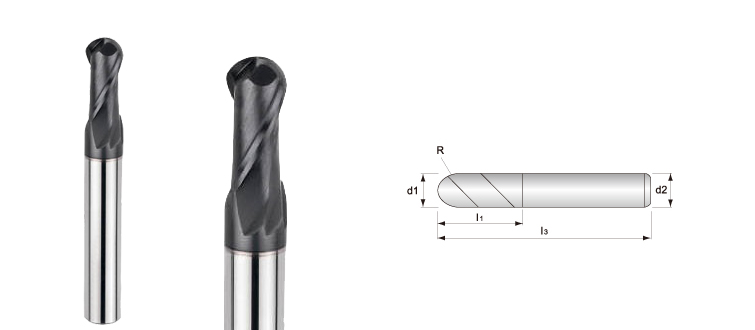

Two flute ball-nose end mills(Sword for High-speed and H-hardness)
For R angle and side milling and face milling. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L l3 |
Shank Dia d2 |
|---|---|---|---|---|
| MR2010FG | R 0.5 | 2 | 50 | 4 |
| MR2015FG | R 0.75 | 3 | 50 | 4 |
| MR2020FG | R 1.0 | 4 | 50 | 4 |
| MR2025FG | R 1.25 | 5 | 50 | 4 |
| MR2030FG | R 1.5 | 6 | 50 | 4 |
| MR2035FG | R 1.75 | 7 | 50 | 4 |
| MR2040FG | R 2.0 | 8 | 50 | 4 |
| MR2045G | R 2.25 | 9 | 50 | 6 |
| MR2050G | R 2.5 | 10 | 50 | 6 |
| MR2055G | R 2.75 | 11 | 50 | 6 |
| MR2060G | R 3.0 | 12 | 50 | 6 |
| MR2065G | R 3.25 | 12 | 60 | 8 |
| MR2070G | R 3.5 | 12 | 60 | 8 |
| MR2075G | R 3.75 | 14 | 60 | 8 |
| MR2080G | R 4.0 | 16 | 60 | 8 |
| MR2090G | R 4.5 | 18 | 75 | 10 |
| MR2100G | R 5.0 | 20 | 75 | 10 |
| MR2120G | R 6.0 | 24 | 75 | 12 |
| MR2160G | R 8.0 | 32 | 100 | 16 |
| MR2200G | R 10 | 40 | 100 | 20 |
| 型號 | R ±0.01 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| MR2010-3 | R0 .5 | 2 | 50 | 3 |
| MR2015-3 | R 0.75 | 3 | 50 | 3 |
| MR2020-3 | R 1.0 | 4 | 50 | 3 |
| MR2025-3 | R 1.25 | 5 | 50 | 3 |
| MR2030-3 | R 1.5 | 6 | 50 | 3 |
| MR2010 | R 0.5 | 2 | 50 | 6 |
| MR2015 | R 0.75 | 3 | 50 | 6 |
| MR2020 | R 1.0 | 4 | 50 | 6 |
| MR2030 | R 1.5 | 6 | 50 | 6 |
| MR2040 | R 2.0 | 8 | 50 | 6 |
For R angle and side milling and face milling.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
