Product Introduce
Taper 2 flute end mills
For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.

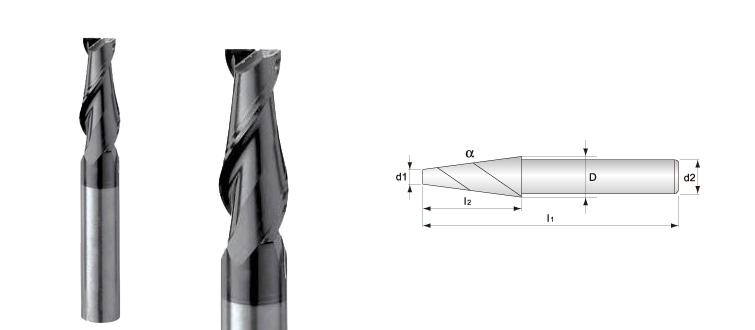

| Type No. | Diameter d1 | Flute length I2 | Taper angle α | Large Mill Dia. D | O.A.L. l1 | Shank Dia. d2 |
|---|---|---|---|---|---|---|
| TPM1φ0.5° | 1.0 | 4 | 0.5° | 1.07 | 50 | 4 |
| TPM1φ1° | 1.0 | 4 | 1° | 1.14 | 50 | 4 |
| TPM1φ1.5° | 1.0 | 4 | 1.5° | 1.21 | 50 | 4 |
| TPM1φ2° | 1.0 | 4 | 2° | 1.28 | 50 | 4 |
| TPM1φ2.5° | 1.0 | 4 | 2.5° | 1.35 | 50 | 4 |
| TPM1φ3° | 1.0 | 4 | 3° | 1.42 | 50 | 4 |
| TPM1φ5° | 1.0 | 5 | 5° | 1.70 | 50 | 4 |
| TPM1φ7° | 1.0 | 5 | 7° | 1.98 | 50 | 4 |
| TPM1φ10° | 1.0 | 5 | 10° | 2.41 | 50 | 4 |
| TPM1.5φ0.5° | 1.5 | 5 | 0.5° | 1.59 | 50 | 4 |
| TPM1.5φ1° | 1.5 | 5 | 1° | 1.67 | 50 | 4 |
| TPM1.5φ1.5° | 1.5 | 5 | 1.5° | 1.76 | 50 | 4 |
| TPM1.5φ2° | 1.5 | 5 | 2° | 1.85 | 50 | 4 |
| TPM1.5φ2.5° | 1.5 | 5 | 2.5° | 1.93 | 50 | 4 |
| TPM1.5φ3° | 1.5 | 5 | 3° | 2.02 | 50 | 4 |
| TPM1.5φ5° | 1.5 | 5 | 5° | 2.37 | 50 | 4 |
| TPM1.5φ7° | 1.5 | 5 | 7° | 2.73 | 50 | 4 |
| TPM1.5φ10° | 1.5 | 5 | 10° | 3.26 | 50 | 4 |
| TPM2φ0.5° | 2.0 | 6 | 0.5° | 2.10 | 50 | 4 |
| TPM2φ1° | 2.0 | 6 | 1° | 2.21 | 50 | 4 |
| TPM2φ1.5° | 2.0 | 6 | 1.5° | 2.31 | 50 | 4 |
| TPM2φ2° | 2.0 | 6 | 2° | 2.41 | 50 | 4 |
| TPM2φ2.5° | 2.0 | 6 | 2.5° | 2.52 | 50 | 4 |
| TPM2φ3° | 2.0 | 6 | 3° | 2.62 | 50 | 4 |
| TPM2φ5° | 2.0 | 6 | 5° | 3.05 | 50 | 4 |
| TPM2φ7° | 2.0 | 6 | 7° | 3.47 | 50 | 4 |
| TPM2φ10° | 2.0 | 6 | 10° | 4.12 | 50 | 4 |
| TPM2.5φ0.5° | 2.5 | 8 | 0.5° | 2.64 | 50 | 4 |
| TPM2.5φ1° | 2.5 | 8 | 1° | 2.78 | 50 | 4 |
| TPM2.5φ1.5° | 2.5 | 8 | 1.5° | 2.91 | 50 | 4 |
| TPM2.5φ2° | 2.5 | 8 | 2° | 3.05 | 50 | 4 |
| TPM2.5φ2.5° | 2.5 | 8 | 2.5° | 3.20 | 50 | 4 |
| TPM2.5φ3° | 2.5 | 8 | 3° | 3.33 | 50 | 4 |
| TPM2.5φ5° | 2.5 | 8 | 5° | 3.90 | 50 | 4 |
| TPM2.5φ7° | 2.5 | 8 | 7° | 4.46 | 50 | 4 |
| TPM2.5φ10° | 2.5 | 8 | 10° | 5.32 | 50 | 4 |
| TPM3φ0.5° | 3.0 | 10 | 0.5° | 3.17 | 50 | 4 |
| TPM3φ1° | 3.0 | 10 | 1° | 3.35 | 50 | 4 |
| TPM3φ1.5° | 3.0 | 10 | 1.5° | 3.52 | 50 | 4 |
| TPM3φ2° | 3.0 | 10 | 2° | 3.69 | 50 | 4 |
| TPM3φ2.5° | 3.0 | 10 | 2.5° | 3.87 | 50 | 4 |
| TPM3φ3° | 3.0 | 10 | 3° | 4.05 | 50 | 6 |
| TPM3φ5° | 3.0 | 10 | 5° | 4.75 | 50 | 6 |
| TPM3φ7° | 3.0 | 10 | 7° | 5.45 | 50 | 6 |
| TPM3φ10° | 3.0 | 10 | 10° | 6.53 | 60 | 8 |
| TPM4φ0.5° | 4.0 | 15 | 0.5° | 4.26 | 50 | 6 |
| TPM4φ1° | 4.0 | 15 | 1° | 4.52 | 50 | |
| TPM4φ1.5° | 4.0 | 15 | 1.5° | 4.79 | 50 | |
| TPM4φ2° | 4.0 | 15 | 2° | 5.04 | 50 | |
| TPM4φ2.5° | 4.0 | 15 | 2.5° | 5.31 | 50 | |
| TPM4φ3° | 4.0 | 15 | 3° | 5.57 | 50 | |
| TPM4φ5° | 4.0 | 15 | 5° | 6.62 | 60 | 8 |
| TPM4φ7° | 4.0 | 15 | 7° | 7.68 | 60 | 8 |
| TPM4φ10° | 4.0 | 15 | 10° | 9.30 | 75 | 10 |
| TPM5φ0.5° | 5.0 | 20 | 0.5° | 5.34 | 50 | 6 |
| TPM5φ1° | 5.0 | 20 | 1° | 5.70 | 50 | 6 |
| TPM5φ1.5° | 5.0 | 20 | 1.5° | 6.04 | 60 | 8 |
| TPM5φ2° | 5.0 | 20 | 2° | 6.39 | 60 | 8 |
| TPM5φ2.5° | 5.0 | 20 | 2.5° | 6.74 | 60 | 8 |
| TPM5φ3° | 5.0 | 20 | 3° | 7.10 | 60 | 8 |
| TPM5φ5° | 5.0 | 20 | 5° | 8.50 | 75 | 10 |
| TPM5φ7° | 5.0 | 20 | 7° | 9.91 | 75 | 10 |
| TPM5φ10° | 5.0 | 20 | 10° | 12.05 | 75 | 12 |
| TPM6φ0.5° | 6.0 | 20 | 0.5° | 6.35 | 60 | 8 |
| TPM6φ1° | 6.0 | 20 | 1° | 6.70 | 60 | 8 |
| TPM6φ1.5° | 6.0 | 20 | 1.5° | 7.05 | 60 | 8 |
| TPM6φ2° | 6.0 | 20 | 2° | 7.40 | 60 | 8 |
| TPM6φ2.5° | 6.0 | 20 | 2.5° | 7.75 | 60 | 8 |
| TPM6φ3° | 6.0 | 20 | 3° | 8.10 | 75 | 10 |
| TPM6φ5° | 6.0 | 20 | 5° | 9.50 | 75 | 10 |
| TPM6φ7° | 6.0 | 20 | 7° | 10.91 | 75 | 12 |
| TPM6φ10° | 6.0 | 20 | 10° | 13.05 | 75 | 12 |
| TPM8φ0.5° | 8.0 | 25 | 0.5° | 8.44 | 75 | 10 |
| TPM8φ1° | 8.0 | 25 | 1° | 8.87 | 75 | 10 |
| TPM8φ1.5° | 8.0 | 25 | 1.5° | 9.31 | 75 | 10 |
| TPM8φ2° | 8.0 | 25 | 2° | 9.74 | 75 | 10 |
| TPM8φ2.5° | 8.0 | 25 | 2.5° | 10.18 | 75 | 12 |
| TPM8φ3° | 8.0 | 25 | 3° | 10.62 | 75 | 12 |
| TPM8φ5° | 80 | 25 | 5° | 12.37 | 100 | 16 |
| TPM8φ7° | 8.0 | 25 | 7° | 14.14 | 100 | 16 |
| TPM8φ10° | 8.0 | 25 | 10° | 16.82 | 100 | 16 |
| TPM10φ0.5° | 10.0 | 35 | 0.5° | 10.61 | 100 | 16 |
| TPM10φ1° | 10.0 | 35 | 1° | 11.22 | 100 | 16 |
| TPM10φ1.5° | 10.0 | 35 | 1.5° | 11.83 | 100 | 16 |
| TPM10φ2° | 10.0 | 35 | 2° | 12.44 | 100 | 16 |
| TPM10φ2.5° | 10.0 | 35 | 2.5° | 13.06 | 100 | 16 |
| TPM10φ3° | 10.0 | 35 | 3° | 13.67 | 100 | 16 |
| TPM10φ5° | 10.0 | 35 | 5° | 16.12 | 100 | 16 |
| TPM10φ7° | 10.0 | 35 | 7° | 18.30 | 100 | 16 |
| TPM10φ10° | 10.0 | 35 | 10° | 22.34 | 100 | 16 |
For High speed cutting.<br /><br /><br />
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
