Product Introduce

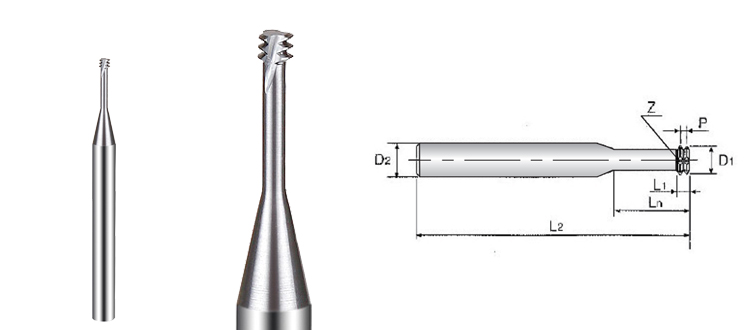

Solid carbide miniature Thread mill
For drilling, chamfering, and threading. The tool life and working efficacy better than old tool type.
|
Type No. |
Nominal Diameter D |
Pitch P |
Cutter Diameter D1 |
Shank Diameter D2 |
Thread Length L1 |
Neck Length Ls |
Over all Length L2 |
No. of Flute Z |
|---|---|---|---|---|---|---|---|---|
| CMT M2 | M2 | 0.4 | 1.52 | 6 | 0.8 | 4.2 | 57 | 4 |
| CMT M2.2 | M2.2 | 0.45 | 1.66 | 6 | 0.9 | 4.6 | 57 | 4 |
| CMT M2.5 | M2.5 | 0.45 | 1.96 | 6 | 0.9 | 5.3 | 57 | 4 |
| CMT M3 | M3 | 0.5 | 2.4 | 6 | 1 | 6.3 | 57 | 4 |
| CMT M4 | M4 | 0.7 | 3.16 | 6 | 1.4 | 8.4 | 57 | 4 |
| CMT M5 | M5 | 0.8 | 4.04 | 6 | 1.6 | 10.5 | 57 | 4 |
| CMT M6 | M6 | 1 | 4.8 | 6 | 2 | 12.6 | 57 | 5 |
| CMT M8 | M8 | 1.25 | 6.5 | 8 | 2.5 | 16.8 | 63 | 5 |
| CMT M10 | M10 | 1.5 | 8.2 | 10 | 3 | 21 | 73 | 6 |
| CMT M12 | M12 | 1.75 | 9.9 | 10 | 3.5 | 25.2 | 73 | 6 |
For drilling, chamfering, and threading. The tool life and working efficacy better than old tool type.
