Corner radius 6 flute end mills
For final process and deep groove and side milling and face milling. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.

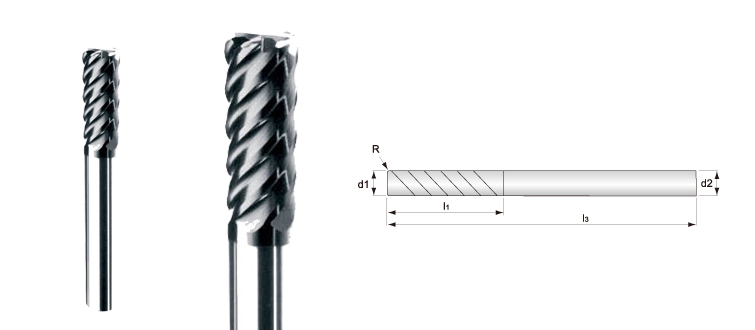

| Type No. | Diameter d1 | Corner R | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|---|
| H60RWAL0605R | 6.0 | R0.5 | 16 | 50 | 6 |
| H60RWAL0610R | 6.0 | R1.0 | 16 | 50 | 6 |
| H60RWAL0805R | 8.0 | R0.5 | 20 | 60 | 8 |
| H60RWAL0810R | 8.0 | R1.0 | 20 | 60 | 8 |
| H60RWAL1010 R | 10.0 | R1.0 | 25 | 75 | 10 |
| H60RWAL1210 R | 12.0 | R1.0 | 30 | 75 | 12 |
| H60RWAL1610 R | 16.0 | R1.0 | 40 | 100 | 16 |
| H60RWAL1620 R | 16.0 | R2.0 | 40 | 100 | 16 |
| H60RWAL2020 R | 20.0 | R2.0 | 45 | 100 | 20 |
For final process and deep groove and side milling and face milling.<br />
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.<br />
