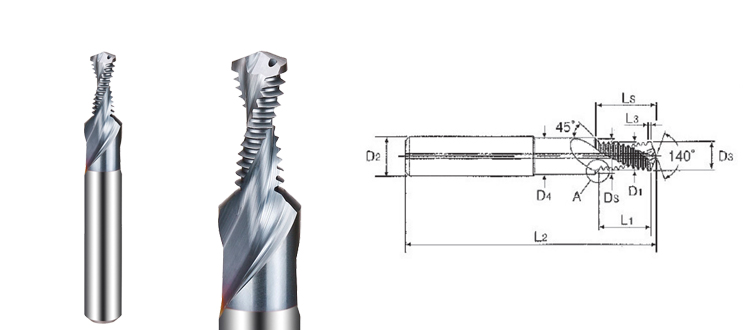

Drill with Coolant hole and Thread Mill with Chamfer
carbide Drill with Coolant hole and Thread Mill with Chamfer
| Type No. |
Nominal Dia D |
Pitch P |
Cutter Dia d1 |
Shank Dia d2 |
Effect Dia ds |
Drill Dia d3 |
|---|---|---|---|---|---|---|
| DTMCM6 | M6 | 1.0 | 4.75 | 8 | 6.3 | 5.00 |
| DTMCM8 | M8 | 1.25 | 6.35 | 10 | 8.3 | 6.75 |
| DTMCM10 | M10 | 1.5 | 8.50 | 12 | 10.3 | 8.50 |
| DTMCM12 | M12 | 1.75 | 10.25 | 14 | 12.3 | 10.25 |
| DTMCM14 | M14 | 2.0 | 12.00 | 16 | 14.3 | 12.00 |
| Type No. |
Max C'sink d4 |
Thread length l1 |
Effect length ls |
Drill length l3 |
O.A.L l2 |
|---|---|---|---|---|---|
| DTMCM6 | 6.6 | 13.00 | 14.68 | 1.00 | 62.0 |
| DTMCM8 | 9.0 | 16.27 | 18.48 | 1.25 | 74.0 |
| DTMCM10 | 11.0 | 21.05 | 23.77 | 1.50 | 79.0 |
| DTMCM12 | 13.5 | 24.21 | 27.25 | 1.50 | 89.0 |
| DTMCM14 | 15.5 | 29.58 | 33.32 | 1.50 | 102.0 |
carbide Drill with Coolant hole and Thread Mill with Chamfer.
