Product Introduce-螺紋銑牙刀(小徑內牙)
Product Introduce

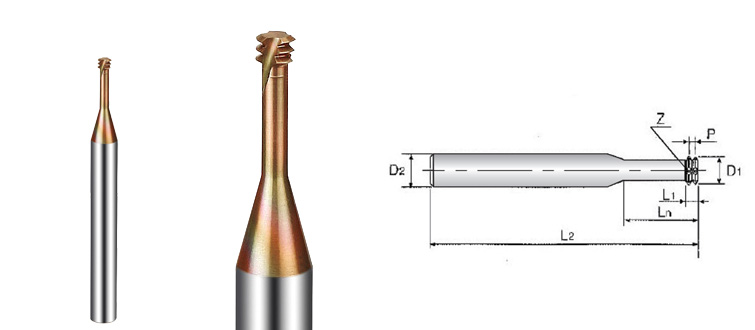

Solid carbide miniature Thread mill
For drilling, chamfering, and threading. The tool life and working efficacy better than old tool type.
| Type No. |
Nominal
Diameter
D
|
Pitch P |
Cutter Diameter D1 |
Thread Length L1 |
Neck Length Ls |
Over all Length L2 |
Shank Diameter D2 |
No. of Flute Z |
|---|---|---|---|---|---|---|---|---|
| CMT M2 | M2 | 0.4 | 1.54 | 1.2 | 4.4 | 50 | 3 | 3 |
| CMT M2.2 | M2.2 | 0.45 | 1.63 | 1.35 | 4.8 | 50 | 3 | 3 |
| CMT M2.5 | M2.5 | 0.45 | 1.96 | 1.35 | 5.3 | 50 | 4 | 3 |
| CMT M3 | M3 | 0.5 | 2.4 | 1.5 | 6.4 | 50 | 4 | 3 |
| CMT M4 | M4 | 0.7 | 3.15 | 2.1 | 8.6 | 60 | 6 | 3 |
| CMT M5 | M5 | 0.8 | 4 | 2.4 | 12 | 60 | 6 | 3 |
| CMT M6 | M6 | 1 | 4.75 | 3 | 13 | 60 | 6 | 3 |
| CMT M8 | M8 | 1.25 | 5.95 | 3.75 | 17.3 | 60 | 6 | 3 |
| CMT M10 | M10 | 1.5 | 7.9 | 4.5 | 22 | 60 | 8 | 3 |
| CMT M12 | M12 | 1.75 | 9.5 | 5.25 | 25.5 | 80 | 10 | 3 |
| CMT M14 | M14 | 2 | 9.9 | 6 | 29 | 80 | 10 | 3 |
| CMT M16 | M16 | 2 | 11.9 | 6 | 33 | 80 | 12 | 4 |
For drilling, chamfering, and threading. The tool life and working efficacy better than tranditional tool type.
