Carbide End Mills
/
Square end mills
/
454 4 flute end mills Helix (blue)
Product Introduce-454平刀-高硬度(藍色)
Product Introduce

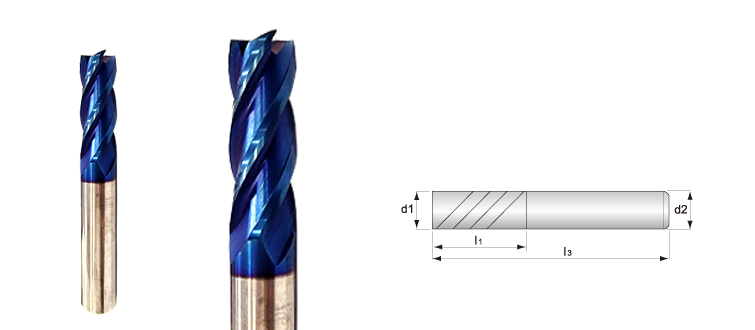

454 4 flute end mills Helix (blue)
For Moderate process, smoothing process, Aerospace, side milling, face milling, deep groove. For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type No. |
Diameter d1 |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|
| SED45L4-010FG | 1.0 | 4 | 75 | 4 |
| SED45L4-015FG | 1.5 | 6 | 75 | 4 |
| SED45L4-020FG | 2.0 | 8 | 75 | 4 |
| SED45L4-025FG | 2.5 | 10 | 75 | 4 |
| SED45L4-030FG | 3.0 | 12 | 75 | 4 |
| SED45L4-040FG | 4.0 | 16 | 75 | 4 |
| SED45L4-030G | 3.0 | 12 | 75 | 6 |
| SED45L4-040G | 4.0 | 16 | 75 | 6 |
| SED45L4-050G | 5.0 | 20 | 75 | 6 |
| SED45L4-060G | 6.0 | 25 | 75 | 6 |
| SED45L4-080G | 8.0 | 25 | 75 | 8 |
| SED45L4-040FBG | 4.0 | 16 | 100 | 4 |
| SED45L4-040BG | 4.0 | 16 | 100 | 6 |
| SED45L4-060BG | 6.0 | 25 | 100 | 6 |
| SED45L4-080BG | 8.0 | 35 | 100 | 8 |
| SED45L4-100G | 10.0 | 40 | 100 | 10 |
| SED45L4-120G | 12.0 | 45 | 100 | 12 |
| SED45XL4-060G | 6.0 | 25 | 150 | 6 |
| SED45XL4-080G | 8.0 | 35 | 150 | 8 |
| SED45XL4-100G | 10.0 | 40 | 150 | 10 |
| SED45XL4-120G | 12.0 | 45 | 150 | 12 |
| SED45XL4-160G | 16.0 | 65 | 150 | 16 |
| SED45XL4-200G | 20.0 | 75 | 150 | 20 |
For Moderate process, smoothing process, Aerospace, side milling, face milling, deep groove.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
