Carbide End Mills
/
Corner radius end mills
/
High hardness Long Shank Corner-radius 2 flute end mills
Product Introduce-超高硬度長柄圓鼻 2刃立銑刀(缺藍或彩色)
Product Introduce

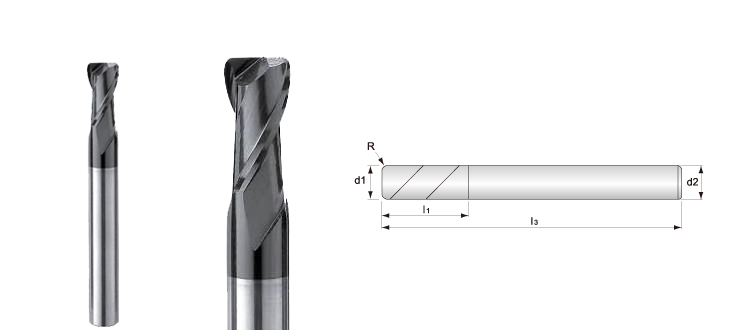

High hardness Long Shank Corner-radius 2 flute end mills
For deep groove process. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type NO. |
Diameter d1 |
Corner R |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|---|
| 2LRM0302RF | 3.0 | R 0.2 | 8 | 75 | 4 |
| 2LRM0305RF | 3.0 | R 0.5 | 8 | 75 | 4 |
| 2LRM0310RF | 3.0 | R 1.0 | 8 | 75 | 4 |
| 2LRM0402RF | 4.0 | R 0.2 | 10 | 75 | 4 |
| 2LRM0405RF | 4.0 | R 0.5 | 10 | 75 | 4 |
| 2LRM0410RF | 4.0 | R 1.0 | 10 | 75 | 4 |
| 2LRM0405RFB | 4.0 | R 0.5 | 10 | 100 | 4 |
| 2LRM0505RB | 5.0 | R 0.5 | 13 | 100 | 6 |
| 2LRM0510RB | 5.0 | R 1.0 | 13 | 100 | 6 |
| 2LRM0602RB | 6.0 | R 0.2 | 15 | 100 | 6 |
| 2LRM0605RB | 6.0 | R 0.5 | 15 | 100 | 6 |
| 2LRM0605R | 6.0 | R 0.5 | 15 | 75 | 6 |
| 2LRM0610R | 6.0 | R 1.0 | 15 | 75 | 6 |
| 2LRM0805R | 8.0 | R 0.5 | 20 | 75 | 8 |
| 2LRM0810R | 8.0 | R 1.0 | 20 | 75 | 8 |
| 2LRM0610RB | 6.0 | R 1.0 | 15 | 100 | 6 |
| 2LRM0615RB | 6.0 | R 1.5 | 15 | 100 | 6 |
| 2LRM0620RB | 6.0 | R 2.0 | 15 | 100 | 6 |
| 2LRM0805RB | 8.0 | R 0.5 | 20 | 100 | 8 |
| 2LRM0810RB | 8.0 | R 1.0 | 20 | 100 | 8 |
| 2LRM0815RB | 8.0 | R 1.5 | 20 | 100 | 8 |
| 2LRM0820RB | 8.0 | R 2.0 | 20 | 100 | 8 |
| 2LRM1005R | 10.0 | R 0.5 | 25 | 100 | 10 |
| 2LRM1010R | 10.0 | R 1.0 | 25 | 100 | 10 |
| 2LRM1015R | 10.0 | R 1.5 | 25 | 100 | 10 |
| 2LRM1020R | 10.0 | R 2.0 | 25 | 100 | 10 |
| 2LRM1030R | 10.0 | R 3.0 | 25 | 100 | 10 |
| 2LRM1205R | 12.0 | R 0.5 | 30 | 100 | 12 |
| 2LRM1210R | 12.0 | R 1.0 | 30 | 100 | 12 |
| 2LRM1215R | 12.0 | R 1.5 | 30 | 100 | 12 |
| 2LRM1220R | 12.0 | R 2.0 | 30 | 100 | 12 |
| 2LRM1230R | 12.0 | R 3.0 | 30 | 100 | 12 |
For deep groove process.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
