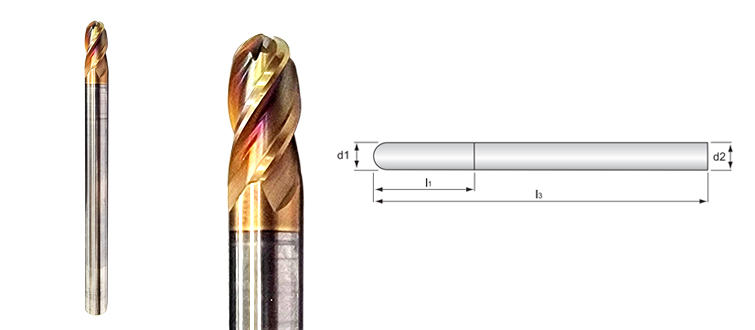

Four flute ball-nose end mills (yellow)
Application For smoothing process, face mill, and side milling. For High speed cutting and high hardness. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|
| MR4010FG | R0.5 | 2 | 50 | 4 |
| MR4015FG | R0.75 | 3 | 50 | 4 |
| MR4020FG | R1 | 4 | 50 | 4 |
| MR4030FG | R1.5 | 6 | 50 | 4 |
| MR4040FG | R2 | 8 | 50 | 4 |
| MR4040G | R2 | 8 | 50 | 6 |
| MR4050G | R2.5 | 10 | 50 | 6 |
| MR4060G | R3 | 12 | 50 | 6 |
| MR4080G | R4 | 16 | 60 | 8 |
| MR4100G | R5 | 20 | 75 | 10 |
| MR4120G | R6 | 24 | 75 | 12 |
| MR4160G | R8 | 32 | 100 | 16 |
| MR4200G | R10 | 40 | 100 | 20 |
Application For smoothing process, face mill, and side milling.
For High speed cutting and high hardness.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
