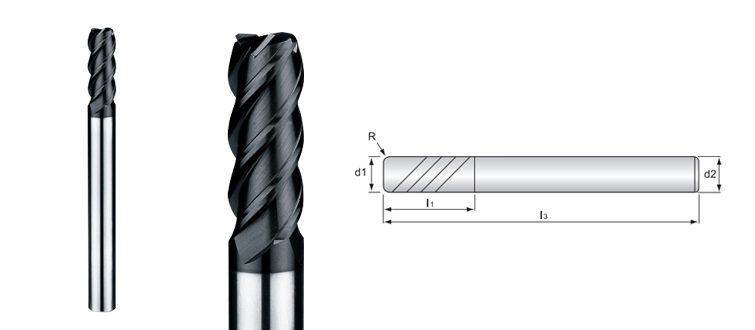

High hardness Corner-Radius 4 Flute end mills
Application: working for R groove or smoothing process. Materials: For mold and die, mold steel, general steel, copper, cast iron.
| Type NO. |
Diameter d1 |
Corner R |
Flute length l1 |
O.A.L. l3 |
Shank Dia d2 |
|---|---|---|---|---|---|
| 4RM 0102RF | 1.0 | R 0.2 | 2.5 | 50 | 4 |
| 4RM 01502RF | 1.5 | R 0.2 | 4 | 50 | 4 |
| 4RM 01505RF | 1.5 | R 0.5 | 4 | 50 | 4 |
| 4RM 0202RF | 2.0 | R 0.2 | 5 | 50 | 4 |
| 4RM 0205RF | 2.0 | R 0.5 | 5 | 50 | 4 |
| 4RM 02502RF | 2.5 | R 0.2 | 6 | 50 | 4 |
| 4RM 02505RF | 2.5 | R 0.5 | 6 | 50 | 4 |
| 4RM 0302RF | 3.0 | R 0.2 | 8 | 50 | 4 |
| 4RM 0302R-3 | 3.0 | R 0.2 | 8 | 50 | 3 |
| 4RM 0302R | 3.0 | R 0.2 | 8 | 50 | 6 |
| 4RM 0303R-3 | 3.0 | R 0.3 | 8 | 50 | 3 |
| 4RM 0303RF | 3.0 | R 0.3 | 8 | 50 | 4 |
| 4RM 0305RF | 3.0 | R 0.5 | 8 | 50 | 4 |
| 4RM 0305R-3 | 3.0 | R 0.5 | 8 | 50 | 3 |
| 4RM 0305R | 3.0 | R 0.5 | 8 | 50 | 6 |
| 4RM 0310RF | 3.0 | R 1.0 | 8 | 50 | 4 |
| 4RM 0310R-3 | 3.0 | R 1.0 | 8 | 50 | 3 |
| 4RM 0310R | 3.0 | R 1.0 | 8 | 50 | 6 |
| 4RM 0402RF | 4.0 | R 0.2 | 10 | 50 | 4 |
| 4RM 0402R | 4.0 | R 0.2 | 10 | 50 | 6 |
| 4RM 0403RF | 4.0 | R 0.3 | 10 | 50 | 4 |
| 4RM 0405RF | 4.0 | R 0.5 | 10 | 50 | 4 |
| 4RM 0405R | 4.0 | R 0.5 | 10 | 50 | 6 |
| 4RM 0410RF | 4.0 | R1.0 | 10 | 50 | 4 |
| 4RM 0410R | 4.0 | R1.0 | 10 | 50 | 6 |
| 4RM 0505R | 5.0 | R 0.5 | 13 | 50 | 6 |
| 4RM 0510R | 5.0 | R 1.0 | 13 | 50 | 6 |
| 4RM 0602R | 6.0 | R 0.2 | 15 | 50 | 6 |
| 4RM 0605R | 6.0 | R 0.5 | 15 | 50 | 6 |
| 4RM 0610R | 6.0 | R1.0 | 15 | 50 | 6 |
| 4RM 0615R | 6.0 | R 1.5 | 15 | 50 | 6 |
| 4RM 0620R | 6.0 | R 2.0 | 15 | 50 | 6 |
| 4RM 0805R | 8.0 | R 0.5 | 20 | 60 | 8 |
| 4RM 0810R | 8.0 | R 1.0 | 20 | 60 | 8 |
| 4RM 0815R | 8.0 | R 1.5 | 20 | 60 | 8 |
| 4RM 0820R | 8.0 | R 2.0 | 20 | 60 | 8 |
| 4RM1005R | 10.0 | R 0.5 | 25 | 75 | 10 |
| 4RM 1010R | 10.0 | R 1.0 | 25 | 75 | 10 |
| 4RM 1015R | 10.0 | R 1.5 | 25 | 75 | 10 |
| 4RM 1020R | 10.0 | R 2.0 | 25 | 75 | 10 |
| 4RM 1025R | 10.0 | R 2.5 | 25 | 75 | 10 |
| 4RM 1030R | 10.0 | R 3.0 | 25 | 75 | 10 |
| 4RM 1205R | 12.0 | R 0.5 | 30 | 75 | 12 |
| 4RM 1210R | 12.0 | R 1.0 | 30 | 75 | 12 |
| 4RM 1215R | 12.0 | R 1.5 | 30 | 75 | 12 |
| 4RM 1220R | 12.0 | R 2.0 | 30 | 75 | 12 |
| 4RM 1225R | 12.0 | R 2.5 | 30 | 75 | 12 |
| 4RM 1230R | 12.0 | R 3.0 | 30 | 75 | 12 |
Application: working for R groove or smoothing process.
Materials: For mold and die, mold steel, general steel, copper, cast iron.
