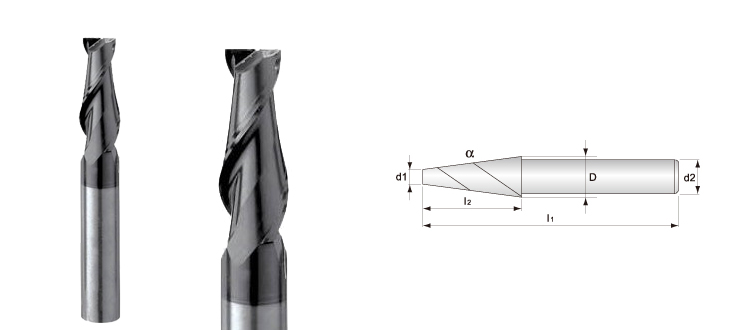

Taper 4 flute end mills
For High speed cutting. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
| Type No. |
Diameter d1 |
Flute length I2 |
Taper angle α |
Large Mill Dia. D |
O.A.L. l1 |
Shank Dia. d2 |
|---|---|---|---|---|---|---|
| 4TPM3φ0.5° | 3.0 | 10 | 0.5° | 3.17 | 50 | 4 |
| 4TPM3φ1° | 3.0 | 10 | 1° | 3.35 | 50 | 4 |
| 4TPM3φ1.5° | 3.0 | 10 | 1.5° | 3.52 | 50 | 4 |
| 4TPM3φ2° | 3.0 | 10 | 2° | 3.07 | 50 | 4 |
| 4TPM3φ3° | 3.0 | 10 | 3° | 4.05 | 50 | 6 |
| 4TPM3φ5° | 3.0 | 10 | 5° | 4.75 | 50 | 6 |
| 4TPM4φ0.5° | 4.0 | 15 | 0.5° | 4.26 | 50 | 6 |
| 4TPM4φ1° | 4.0 | 15 | 1° | 4.52 | 50 | 6 |
| 4TPM4φ1.5° | 4.0 | 15 | 1.5° | 4.79 | 50 | 6 |
| 4TPM4φ2° | 4.0 | 15 | 2° | 5.05 | 50 | 6 |
| 4TPM4φ3° | 4.0 | 15 | 3° | 5.57 | 50 | 6 |
| 4TPM4φ5° | 4.0 | 15 | 5° | 6.62 | 60 | 8 |
| 4TPM5φ0.5° | 5.0 | 20 | 0.5° | 5.35 | 50 | 6 |
| 4TPM5φ1° | 5.0 | 20 | 1° | 5.70 | 50 | 6 |
| 4TPM5φ1.5° | 5.0 | 20 | 1.5° | 6.05 | 60 | 8 |
| 4TPM5φ2° | 5.0 | 20 | 2° | 6.40 | 60 | 8 |
| 4TPM5φ3° | 5.0 | 20 | 3° | 7.10 | 60 | 8 |
| 4TPM5φ5° | 5.0 | 20 | 5° | 8.50 | 75 | 10 |
| 4TPM6φ0.5° | 6.0 | 20 | 0.5° | 6.35 | 75 | 8 |
| 4TPM6φ1° | 6.0 | 20 | 1° | 6.70 | 75 | 8 |
| 4TPM6φ1.5° | 6.0 | 20 | 1.5° | 7.05 | 75 | 8 |
| 4TPM6φ2° | 6.0 | 20 | 2° | 7.40 | 75 | 8 |
| 4TPM6φ3° | 6.0 | 20 | 3° | 8.10 | 75 | 10 |
| 4TPM6φ5° | 6.0 | 20 | 5° | 9.50 | 75 | 10 |
| 4TPM8φ0.5° | 8.0 | 25 | 0.5° | 8.44 | 75 | 10 |
| 4TPM8φ1° | 8.0 | 25 | 1° | 8.87 | 75 | 10 |
| 4TPM8φ1.5° | 8.0 | 25 | 1.5° | 9.31 | 75 | 10 |
| 4TPM8φ2° | 8.0 | 25 | 2° | 9.75 | 75 | 10 |
| 4TPM8φ3° | 8.0 | 25 | 3° | 10.62 | 75 | 12 |
| 4TPM8φ5° | 80 | 25 | 5° | 12.37 | 100 | 16 |
| 4TPM10φ0.5° | 10.0 | 35 | 0.5° | 10.61 | 100 | 16 |
| 4TPM10φ1° | 10.0 | 35 | 1° | 11.22 | 100 | 16 |
| 4TPM10φ1.5° | 10.0 | 35 | 1.5° | 11.83 | 100 | 16 |
| 4TPM10φ2° | 10.0 | 35 | 2° | 12.44 | 100 | 16 |
| 4TPM10φ3° | 10.0 | 35 | 3° | 13.67 | 100 | 16 |
| 4TPM10φ5° | 10.0 | 35 | 5° | 16.00 | 100 | 16 |
We also provide special made.
For High speed cutting.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel.
