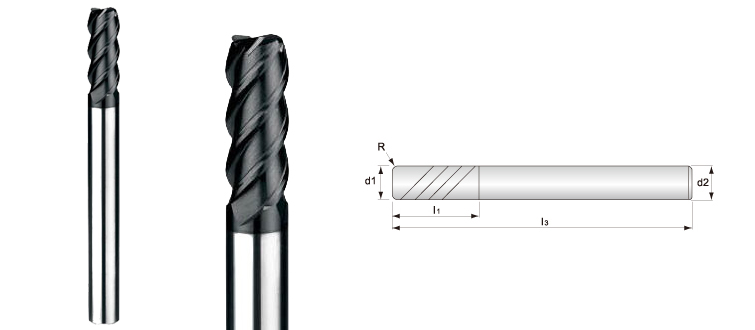

Long shank Corner radius 4 flute end mills
For final process and deep groove and side milling and face milling. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type NO. |
Diameter d1 |
Corner R |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|---|
| 4LRM0302RF | 3 | R 0.2 | 8 | 75 | 4 |
| 4LRM0305RF | 3 | R 0.5 | 8 | 75 | 4 |
| 4LRM0305R-3 | 3 | R 0.5 | 8 | 75 | 3 |
| 4LRM0310RF | 3 | R 1.0 | 8 | 75 | 4 |
| 4LRM0402RF | 4 | R 0.2 | 10 | 75 | 4 |
| 4LRM0405RF | 4 | R 0.5 | 10 | 75 | 4 |
| 4LRM0410RF | 4 | R 1.0 | 10 | 75 | 4 |
| 4LRM0405R | 4 | R 1.0 | 10 | 75 | 6 |
| 4LRM0410R | 4 | R 1.0 | 10 | 75 | 6 |
| 4LRM0605R | 6 | R 0.5 | 15 | 75 | 6 |
| 4LRM0610R | 6 | R 1.0 | 15 | 75 | 6 |
| 4LRM0805R | 8 | R 0.5 | 20 | 75 | 8 |
| 4LRM0810R | 8 | R 1.0 | 20 | 75 | 8 |
| 4LRM0405RFB | 4 | R 0.5 | 10 | 100 | 4 |
| 4LRM0405RB | 4 | R 0.5 | 10 | 100 | 6 |
| 4LRM0410RFB | 4 | R 1.0 | 10 | 100 | 4 |
| 4LRM0410RB | 4 | R 1.0 | 10 | 100 | 6 |
| 4LRM0505RB | 5 | R 0.5 | 12 | 100 | 6 |
| 4LRM0510RB | 5 | R 1.0 | 12 | 100 | 6 |
| 4LRM0602RB | 6 | R 0.2 | 15 | 100 | 6 |
| 4LRM0605RB | 6 | R 0.5 | 15 | 100 | 6 |
| 4LRM0610RB | 6 | R 1.0 | 15 | 100 | 6 |
| 4LRM0615RB | 6 | R 1.5 | 15 | 100 | 6 |
| 4LRM0620RB | 6 | R 2.0 | 15 | 100 | 6 |
| 4LRM0805RB | 8 | R 0.5 | 20 | 100 | 8 |
| 4LRM0810RB | 8 | R 1.0 | 20 | 100 | 8 |
| 4LRM0815RB | 8 | R 1.5 | 20 | 100 | 8 |
| 4LRM0820RB | 8 | R 2.0 | 20 | 100 | 8 |
| 4LRM1005R | 10 | R 0.5 | 25 | 100 | 10 |
| 4LRM1010R | 10 | R 1.0 | 25 | 100 | 10 |
| 4LRM1015R | 10 | R 1.5 | 25 | 100 | 10 |
| 4LRM1020R | 10 | R 2.0 | 25 | 100 | 10 |
| 4LRM1030R | 10 | R 3.0 | 25 | 100 | 10 |
| 4LRM1205R | 12 | R 0.5 | 30 | 100 | 12 |
| 4LRM1210R | 12 | R1.0 | 30 | 100 | 12 |
| 4LRM1215R | 12 | R1.5 | 30 | 100 | 12 |
| 4LRM1220R | 12 | R 2.0 | 30 | 100 | 12 |
| 4LRM1230R | 12 | R 3.0 | 30 | 100 | 12 |
For final process and deep groove and side milling and face milling.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
