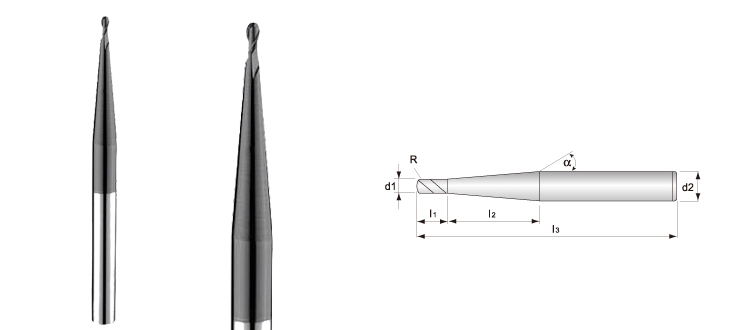

Long taper neck, 2 flute ball end mills
For finishing process, face milling and side milling. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type No. | R ±0.01 | Flute Length I1 | Taper Angle α | Taper Neck I2 | O.A.L. I3 | Shank Dia. d2 |
|---|---|---|---|---|---|---|
| MBN20103-6 | R 0.5 | 2 | 3° | 32 | 75 | 6 |
| MBN20105-6 | R 0.5 | 2 | 5° | 32 | 75 | 6 |
| MBN20203-6 | R 1 | 4 | 3° | 27 | 100 | 6 |
| MBN20205-6 | R 1 | 4 | 5° | 27 | 100 | 6 |
| MBN203015-6 | R 1.5 | 6 | 1.5° | 35 | 100 | 6 |
| MBN20303-6 | R 1.5 | 6 | 3° | 35 | 100 | 6 |
| MBN204015-6 | R 2 | 8 | 1.5° | 28 | 100 | 6 |
| MBN20403-6 | R 2 | 8 | 3° | 28 | 100 | 6 |
| MBN20603 | R 3 | 12 | 3° | 32 | 100 | 8 |
| MBN20605 | R 3 | 12 | 5° | 35 | 100 | 10 |
| MBN20603 | R 3 | 12 | 3° | 32 | 150 | 8 |
| MBN20605 | R 3 | 12 | 5° | 35 | 150 | 10 |
| MBN20803 | R 4 | 16 | 3° | 36 | 100 | 10 |
| MBN20805 | R 4 | 16 | 5° | 39 | 100 | 12 |
| MBN20803 | R 4 | 16 | 3° | 36 | 150 | 10 |
| MBN20805 | R 4 | 16 | 5° | 39 | 150 | 12 |
| MBN21003 | R 5 | 20 | 3° | 40 | 100 | 12 |
| MBN21003 | R 5 | 20 | 3° | 40 | 150 | 12 |
| MBN21205 | R 6 | 24 | 5° | 47 | 100 | 16 |
| MBN21205 | R 6 | 24 | 5° | 47 | 150 | 16 |
For finishing process, face milling and side milling.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
