Carbide End Mills
/
Ballnose end mills
/
High hardness 4 flute ball end mills
Product Introduce-高硬度4刃球型立銑刀 (缺藍彩色)
Product Introduce

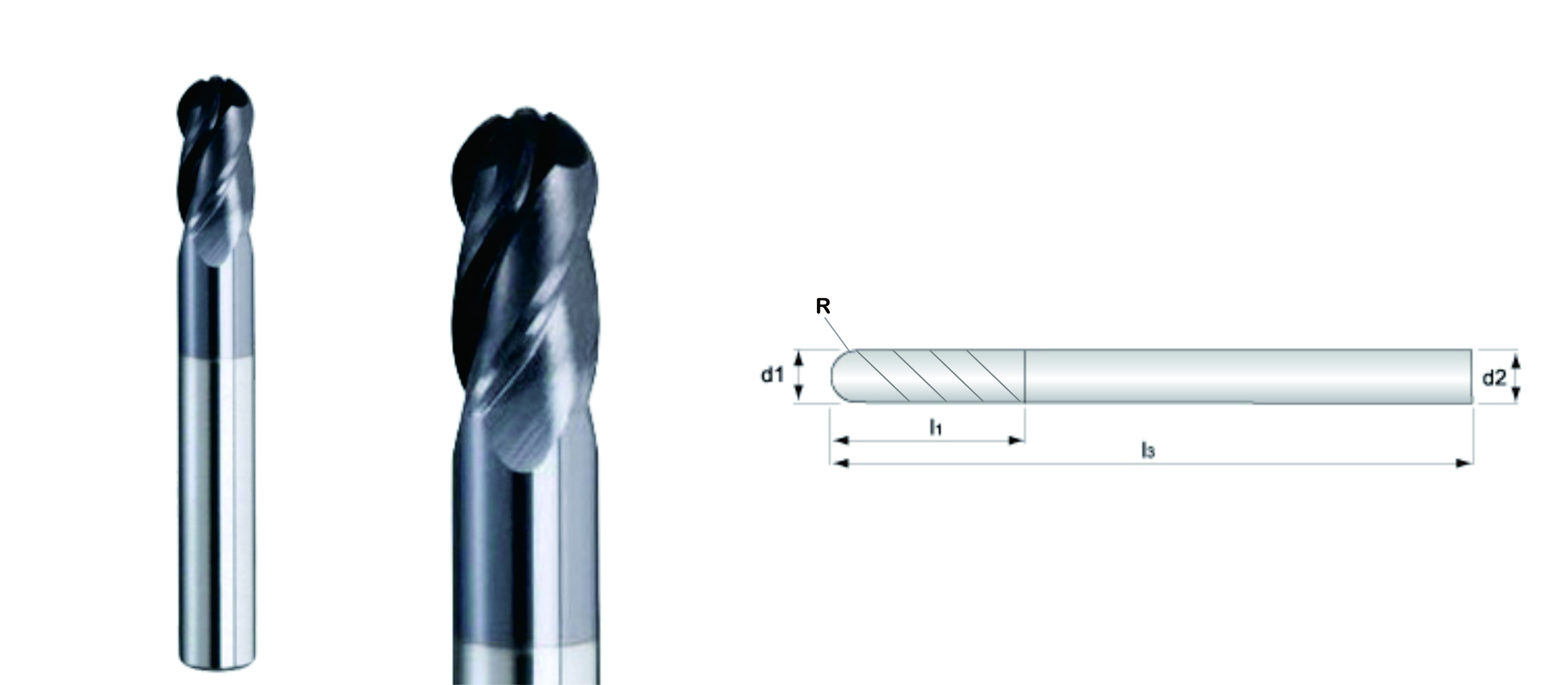

High hardness 4 flute ball end mills
For finishing process, face milling and side milling. Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
| Type No. | R ±0.01 | Flute Length l1 | O.A.L. l3 | Shank Dia. d2 |
|---|---|---|---|---|
| MR4AL010F | R 0.5 | 2 | 50 | 4 |
| MR4AL015F | R 0.75 | 3 | 50 | 4 |
| MR4AL020F | R 1 | 4 | 50 | 4 |
| MR4AL030F | R 1.5 | 6 | 50 | 4 |
| MR4AL040F | R 2 | 8 | 50 | 4 |
| MR4AL050 | R 2.5 | 10 | 50 | 6 |
| MR4AL060 | R 3 | 12 | 50 | 6 |
| MR4AL080 | R 4 | 16 | 60 | 8 |
| MR4AL100 | R 5 | 20 | 75 | 10 |
| MR4AL120 | R 6 | 24 | 75 | 12 |
| MR4AL160 | R 8 | 32 | 100 | 16 |
| MR4AL200 | R 10 | 40 | 100 | 20 |
For finishing process, face milling and side milling.
Application materials: General steel, mold and die, mold steel, copper, cast iron, hardened steel, alloy steel.
