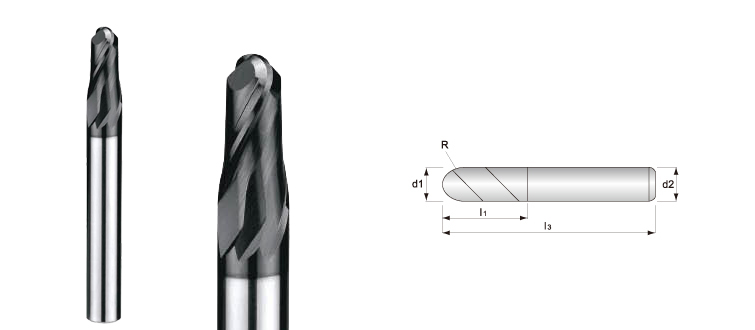

hign hardness Long shank ball nose 2 flute end mills
For deep groove and R angle
| Type NO. | R ±0.01 |
Flute length l1 |
O.A.L. l3 |
Shank Dia. d2 |
|---|---|---|---|---|
| LR2AL010F | R 0.5 | 2 | 75 | 4 |
| LR2AL015F | R 0.75 | 3 | 75 | 4 |
| LR2AL020F | R 1 | 4 | 75 | 4 |
| LR2AL030F | R 1.5 | 6 | 75 | 4 |
| LR2AL030-3 | R 1.5 | 6 | 75 | 3 |
| LR2AL040F | R 2 | 8 | 75 | 4 |
| LR2AL010 | R 0.5 | 2 | 75 | 6 |
| LR2AL015 | R 0.75 | 3 | 75 | 6 |
| LR2AL020 | R 1 | 4 | 75 | 6 |
| LR2AL030 | R 1.5 | 6 | 75 | 6 |
| LR2AL040 | R 2 | 8 | 75 | 6 |
| LR2AL050 | R 2.5 | 10 | 75 | 6 |
| LR2AL060 | R 3 | 12 | 75 | 6 |
| LR2AL080 | R 4 | 16 | 75 | 8 |
| LR2AL010FB | R 0.5 | 2 | 100 | 4 |
| LR2AL010B | R 0.5 | 2 | 100 | 6 |
| LR2AL020FB | R 1 | 4 | 100 | 4 |
| LR2AL020B | R 1 | 4 | 100 | 6 |
| LR2AL030FB | R 1.5 | 6 | 100 | 4 |
| LR2AL030B-3 | R 1.5 | 6 | 100 | 3 |
| LR2AL030B | R 1.5 | 6 | 100 | 6 |
| LR2AL040FB | R 2 | 8 | 100 | 4 |
| LR2AL040B | R 2 | 8 | 100 | 6 |
| LR2AL050B | R 2.5 | 10 | 100 | 6 |
| LR2AL060B | R 3 | 12 | 100 | 6 |
| LR2AL080B | R 4 | 16 | 100 | 8 |
| LR2AL0100 | R 5 | 20 | 100 | 10 |
| LR2AL0120 | R 6 | 24 | 100 | 12 |
| XLR2AL060 | R 3 | 12 | 150 | 6 |
| XLR2AL080 | R 4 | 16 | 150 | 8 |
| XLR2AL100 | R 5 | 20 | 150 | 10 |
| XLR2AL120 | R 6 | 24 | 150 | 12 |
| XLR2AL160 | R 8 | 32 | 150 | 16 |
| XLR2AL200 | R 10 | 40 | 150 | 20 |
For deep groove and R angle
